About this goods
This product boasts exceptional mechanical properties, with a yield strength range of 170-860 MPa. It exhibits high tensile strength, excellent toughness, and superior pressure resistance, capable of withstanding diverse operational pressures. Its smooth, burr-free inner surface minimises fluid resistance, ensuring unimpeded medium conveyance. Additionally, it offers outstanding weldability and machinability, permitting flexible cutting and joining to accommodate varied installation scenarios. Widely employed across sectors including:
Food processing (water/oil transfer pipes, equipment support piping),
Construction engineering (water supply/drainage pipelines, heating networks, decorative railings),
Chemical industry (corrosion-resistant fluid pipelines, reactor vessel support piping),
Medical equipment (sterile transfer lines, instrument support tubing),
New energy (battery cooling tubes, photovoltaic mounting support piping),
Marine engineering (shipboard piping, subsea facility pipelines),
and municipal infrastructure (urban water supply networks, gas pipelines).
Custom specifications for diameter, wall thickness, length, and surface treatment are available, prioritising safety and durability. offshore engineering (vessel piping, subsea facility pipelines), and municipal infrastructure (urban water supply networks, gas pipelines). Customisable specifications for diameter, wall thickness, length, and surface treatment ensure safety, durability, and cost-effectiveness, making it a dependable choice for pipeline systems across industries.
Product Details | |||||

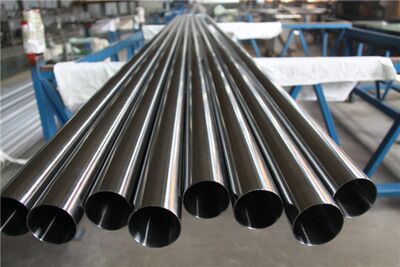

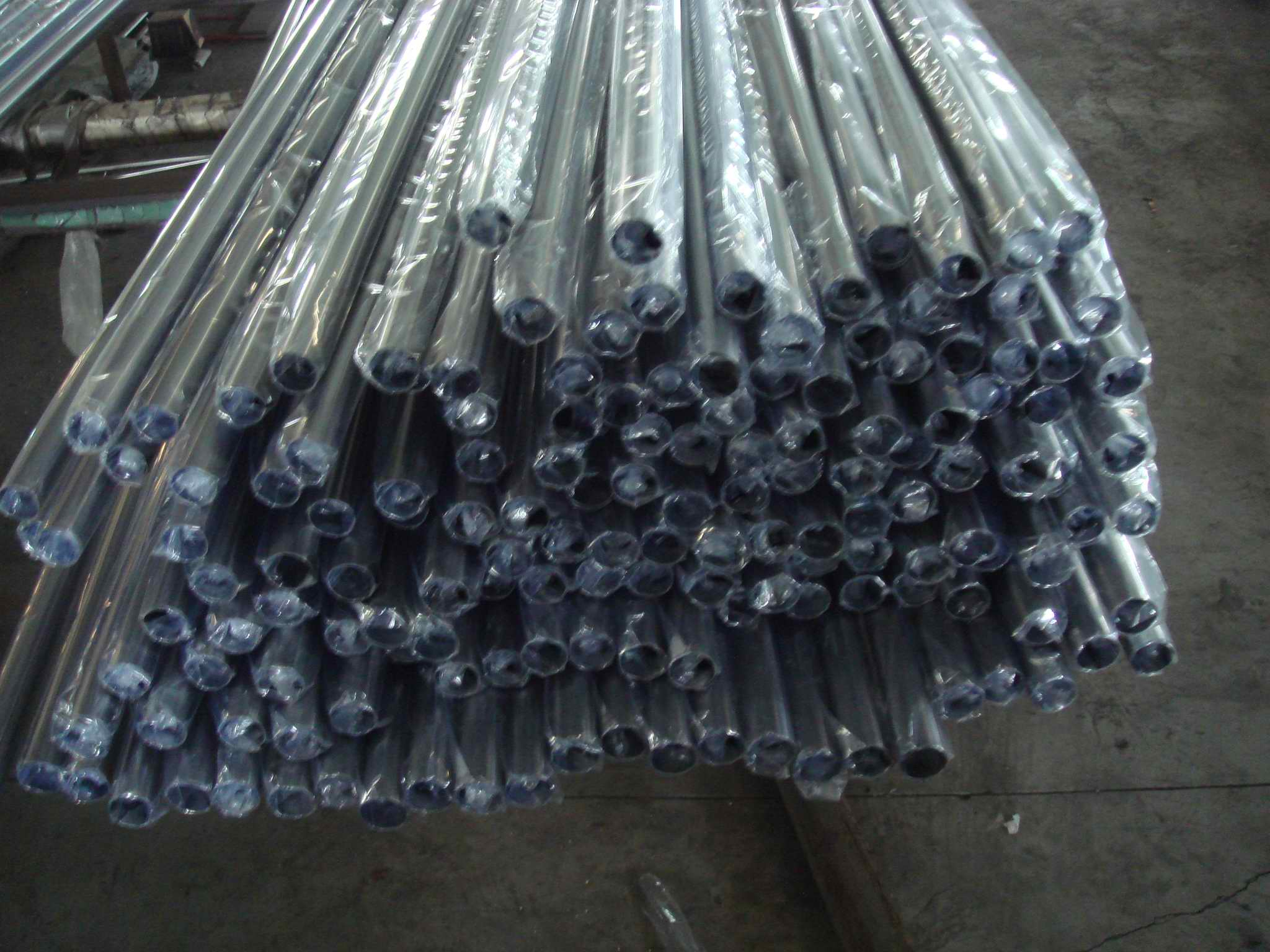

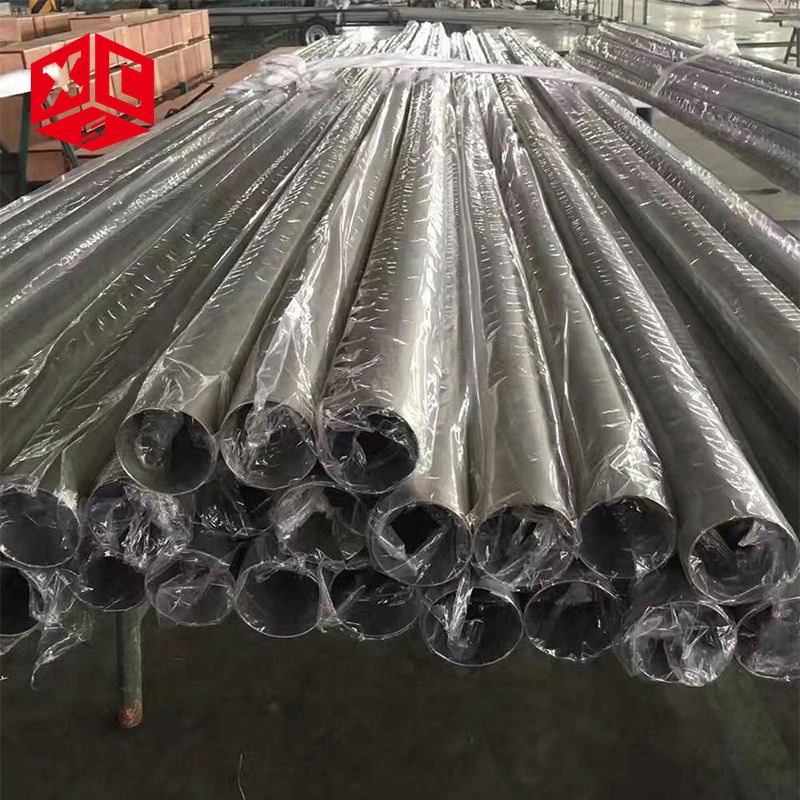

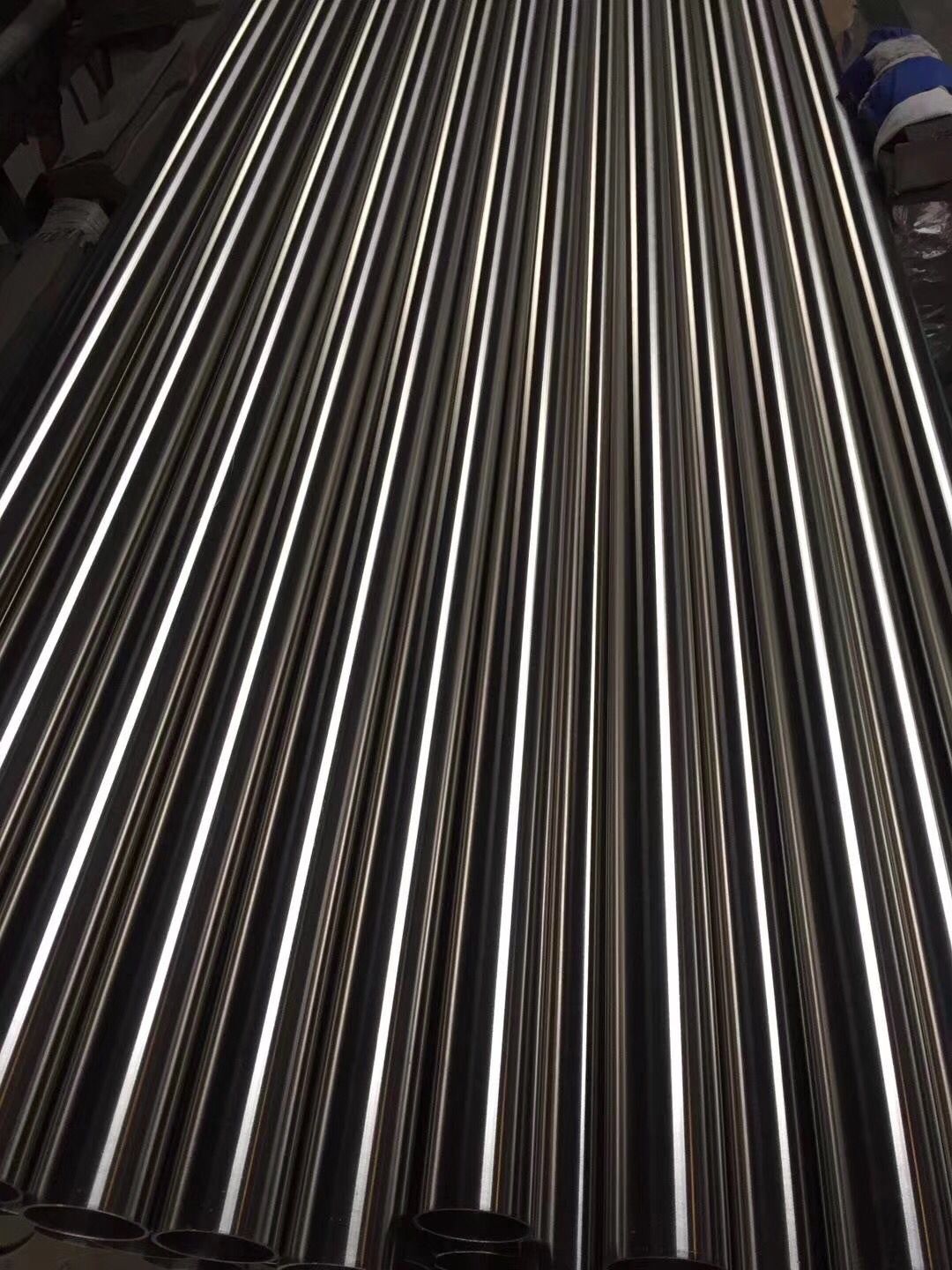

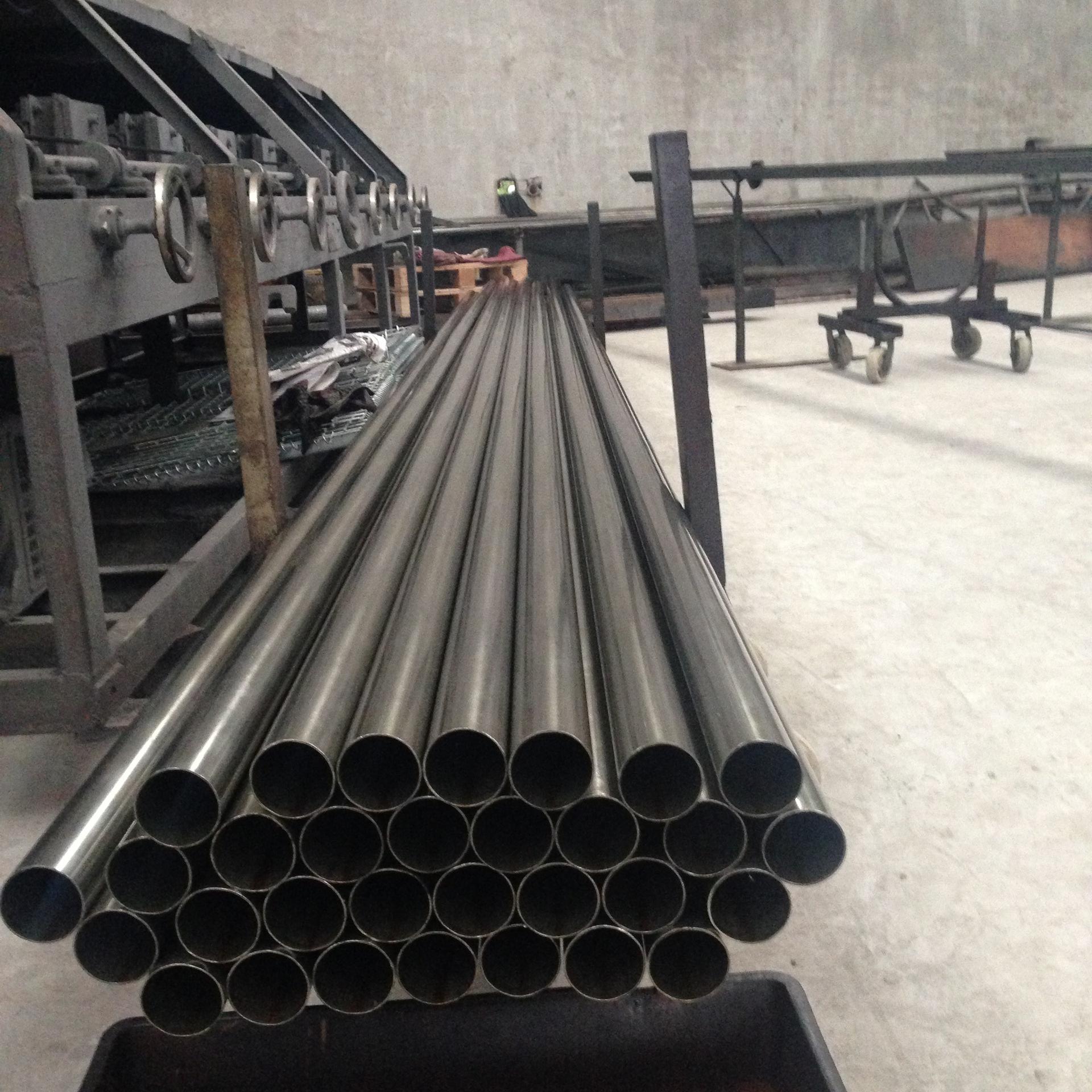

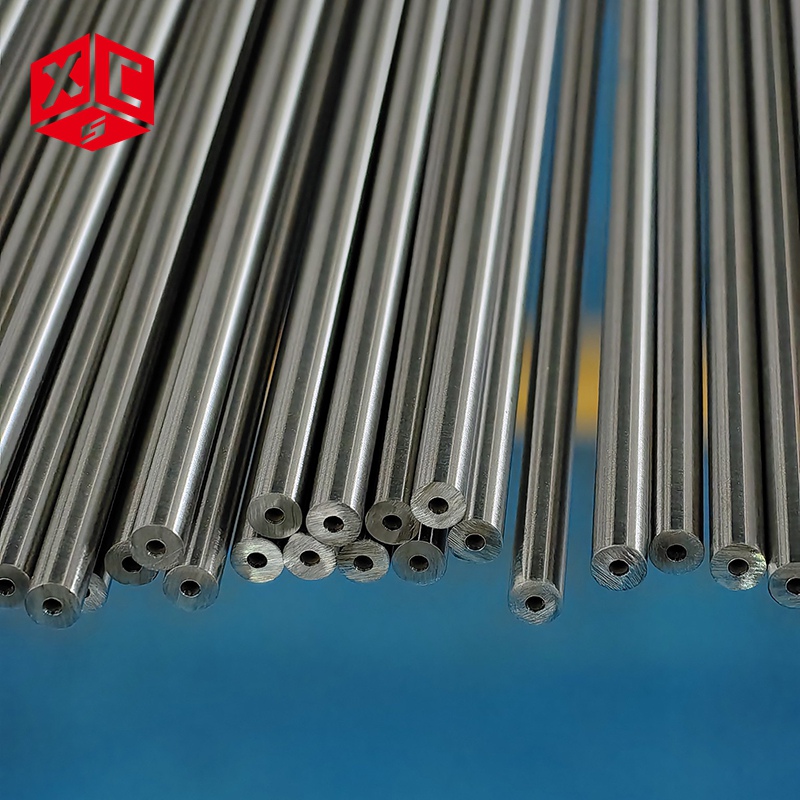

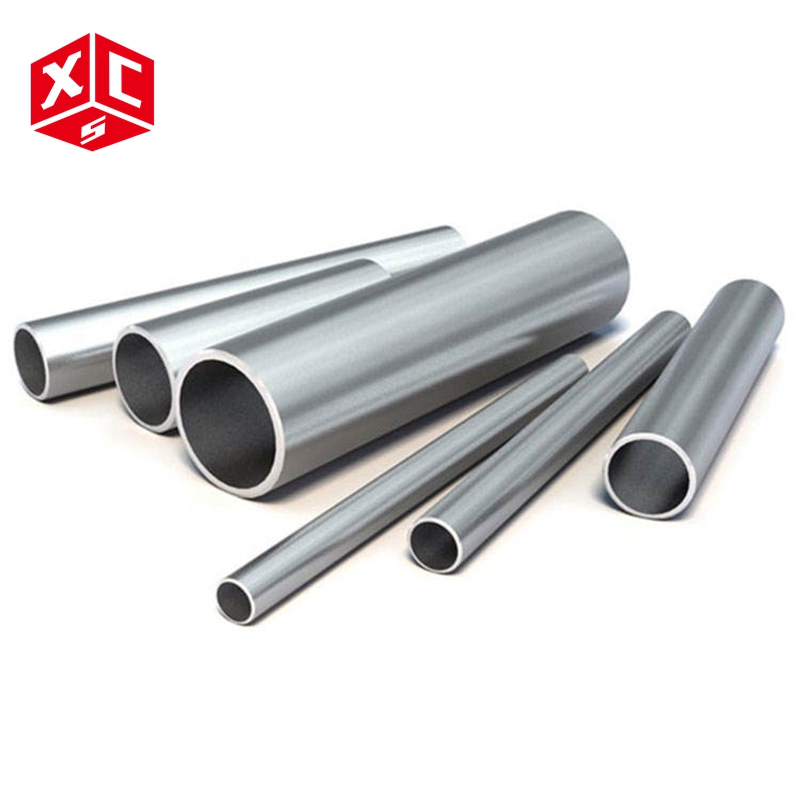

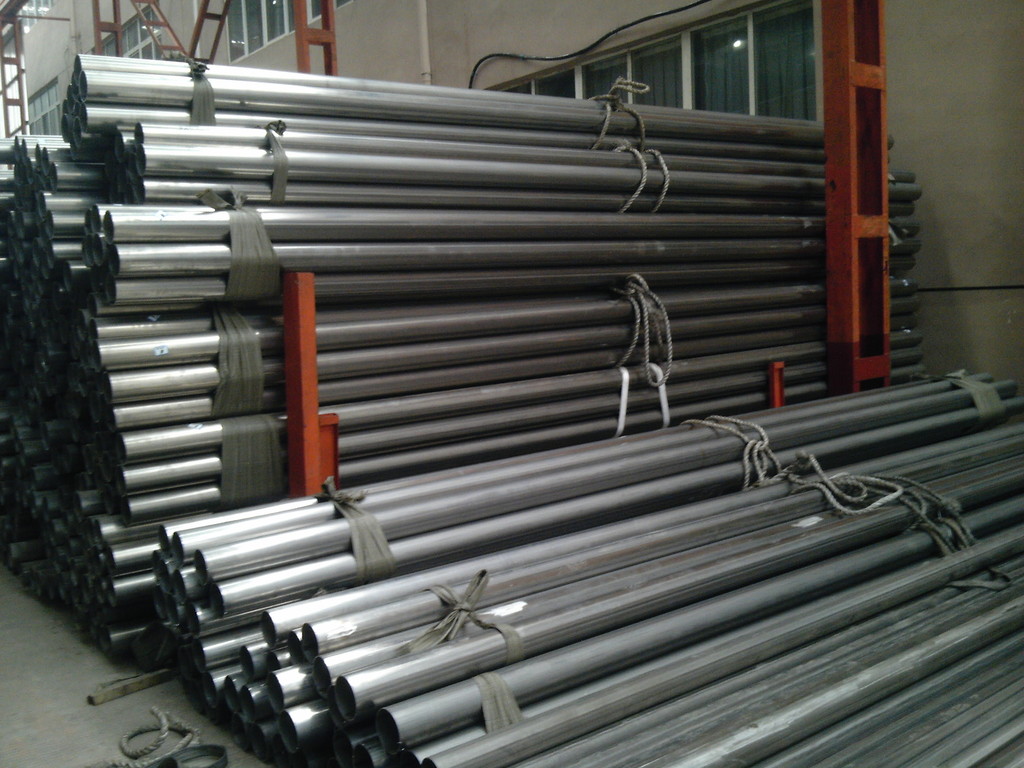

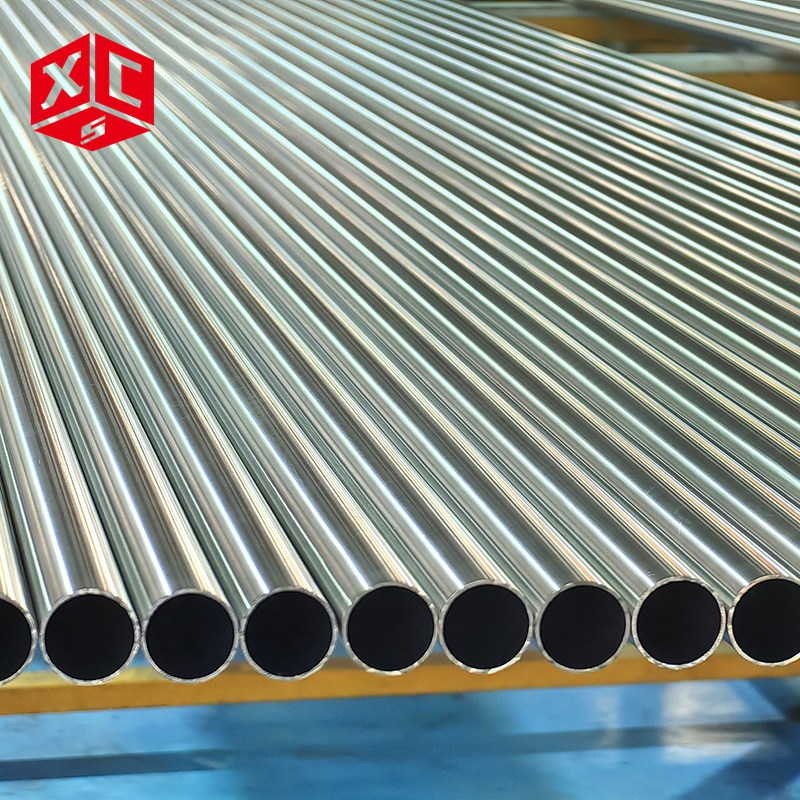

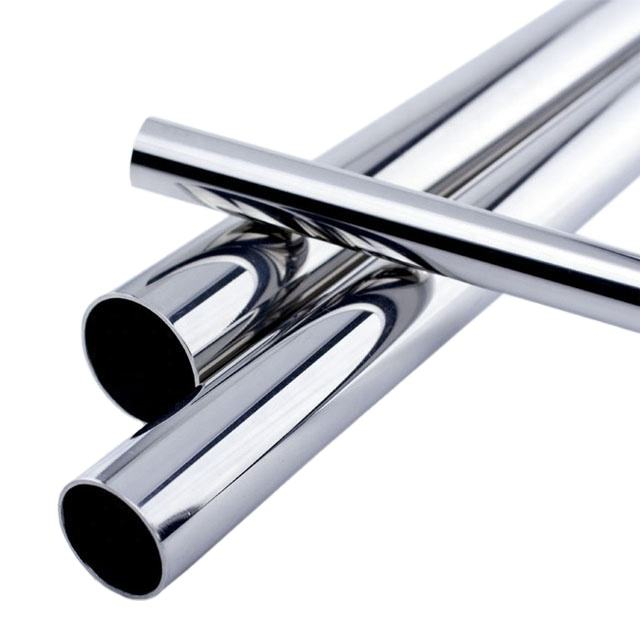

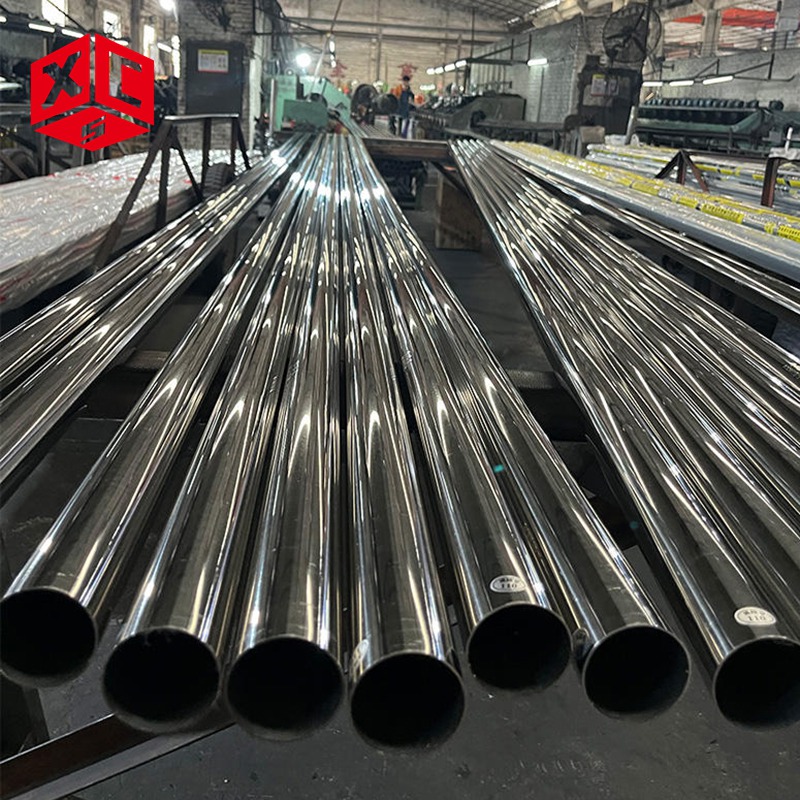

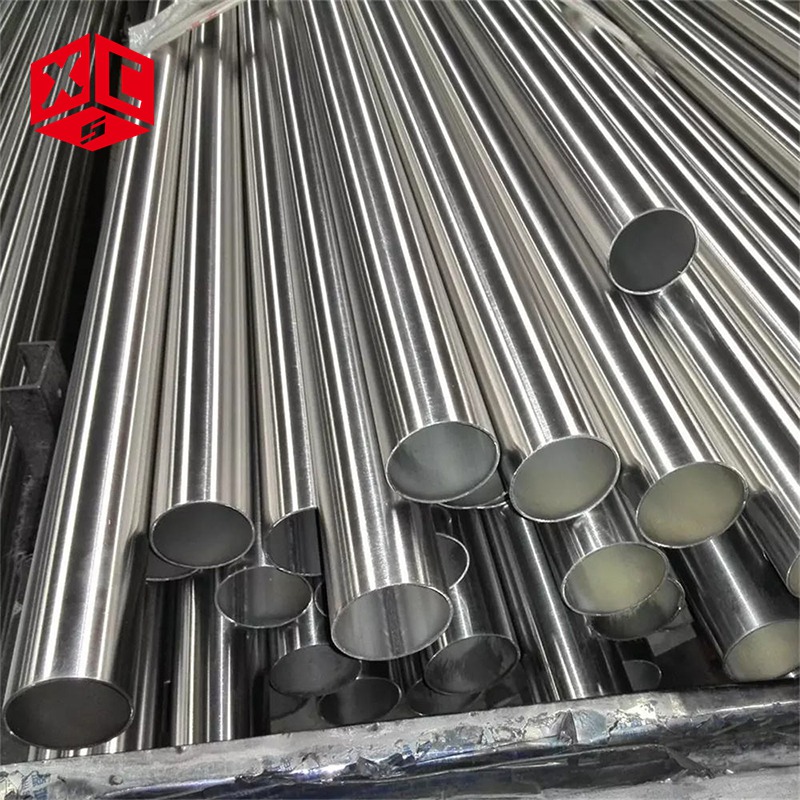

Product name | Stainless steel pipe | ||||
Chinese grade | 201/304/304L/316/316L/430/410/2205/630/etc. | ||||
International grade | S20100/S30100/S30400/S30403/S31600/S31603/S43000/S41000/S31803/17 - 4PH/etc. 1.4372/1.4319/1.4301/1.4307/1.4401/1.4404/1.4016/1.4006/1.4462/1.4542/etc. | ||||
Surface treatment | No.1、2D、2B、BA、4#、8K、HL | ||||
Specifications | (0.5-21)*(6-480)*(1500-12000)mm | ||||
Quality control | Each batch of goods is accompanied by a "Product Quality Certificate". Samples can be sent for performance testing. The quality is traceable and verifiable. | ||||
Terms of Trade | |||||
Price Terms | EXW, FOB, CIF, CFR, DDP, etc. | ||||
Payment Terms | T/T, L/C, etc. | ||||
MOQ | Standard products have an MOQ of 1 coil. Small trial orders are accommodated to assist new clients in verifying quality. | ||||
Delivery Time | Stock orders ship within 3-7 working days; custom orders require 15-30 working days, subject to order volume and specifications. | ||||
Performance indicators | |||||
Material | Yield strength MPa | Tensile strength MPa | Elongation (A5) % | Brinell hardness HBW | |
201 | ≥275 | 520-720 | ≥40 | 150-180 | |
304 | ≥205 | 515-720 | ≥40 | 140-170 | |
304L | ≥170 | 485-650 | ≥40 | 130-160 | |
316 | ≥205 | 515-720 | ≥40 | 140-170 | |
316L | ≥170 | 485-650 | ≥40 | 130-160 | |
430 | ≥205 | 450-600 | ≥22 | 130-160 | |
410 | ≥205 | 480-650 | ≥20 | 150-180 | |
2205 | ≥450 | 620-800 | ≥25 | 180-220 | |
630 | ≥860 | 1030-1230 | ≥10 | 280-320 | |
